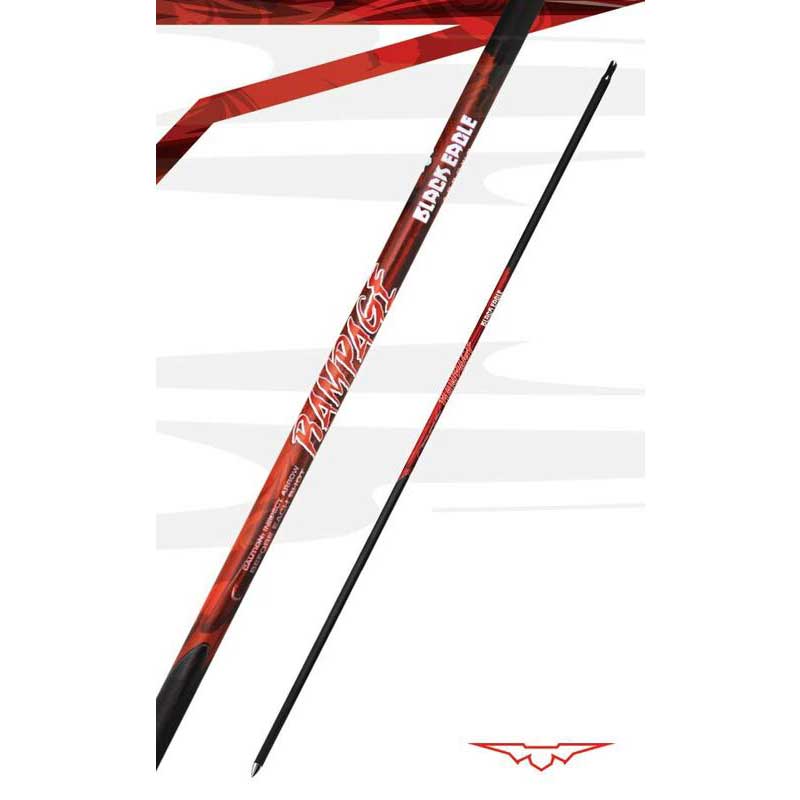

Black Eagle Rampage .001 Shaft

Extreme Outfitters can custom cut your arrow shafts for you. Enter the length you would like them cut in the check out notes. Measure end to end of the shaft, excluding any hardware (nocks, bushings, inserts and points). If you leave this field blank, your shafts will be shipped uncut at full length. Please also let us know if you would like your inserts glued. There are no additional charges for this.

17 SERIES | SMALL DIAMETER

The Black Eagle Rampage .001 Shaft is a small-diameter 100% carbon shaft designed to have superior long distance performance with spine-to-weight ratios creating a balance for optimal speed, kinetic energy, and penetration. The Rampage is an exceptional hunting arrow with no sacrifices to durability. It’s the perfect shaft for any big game.

FEATURES
.001″ Straightness or Straighter
± 1 Grain Weight Tolerance
32″ Shaft Length

SHAFTS INCLUDE:
Stainless Steel Bone Crusher Half-Out – 52 Grains
BEA – R -Nocks (Orange) – 10 Grains
REQUIRED: POINTS, VANES
Note: 150 spine Includes Platinum Half Outs

DON’T FORGET EXTRA COMPONENTS

To install the Half-Out in the Black Eagle Rampage .001 Shaft

1. Square the end of the arrow shaft
2. Dry fitting is recommended on all components. Slide half-out in shaft and spin test (if you prefer)
3. If a slight wobble is noticed, DON’T PANIC! Rotate the half-out with field point installed until the spin is true.
4. Again, Rotate Half-Out until it spins perfect.
5. Use a Silver or Black Sharpie and mark the Shaft and the Half-Out for perfect alignment once glue is applied.
6. We have tested Our fletching glue, insert/outsert glue and epoxy and all of them work great.
7. Apply a even amount of glue around the shaft of the Half-Out to ensure the glue channels get enough glue in them to hold.
8. Once the glued half-out is finished stand the arrow on the point to dry.

SPINE        ID             OD            GPI
150            .204″         .307″           16
200           .204″         .285″           12.8
250           .204″         .276″           10.7
300          .204″         .264″           8.7
350           .204″         .261″           8.2
400          .204″           .253″           7
