Easton Axis Arrows Guide: 4mm vs 5mm, Components, Spine & Best Uses

Easton Axis Arrows: The Quick Answer

If somebody walks into our shop looking for a durable hunting arrow and they don't necessarily need the lightest shaft possible, the Easton Axis is still one of the first arrows we're going to talk about.

The Axis 5mm is the proven all-around hunting option. It's got a little more GPI than some of the newer lightweight 5mm shafts, but that extra material is part of why the Axis has built such a strong reputation for durability.

The Axis 4mm takes that same general philosophy and puts it into a true micro-diameter platform for somebody who puts more emphasis on wind performance and long-range shooting.

Why the Easton Axis Has Stayed So Popular

The Axis isn't a new arrow, and honestly that's part of the reason I like it.

We have years of real-world experience with these shafts. They've been through hunting seasons, 3D courses, target shooting, and just about every kind of abuse a hunting arrow sees.

The Axis 5mm in particular has always hit a really useful middle ground. It's smaller than a traditional large-diameter carbon arrow, but it's still heavy enough and robust enough that we can build a very durable hunting setup around it.

That's why you'll still see it come up whenever we're talking about somebody who prioritizes durability and hunting performance over chasing maximum arrow speed.

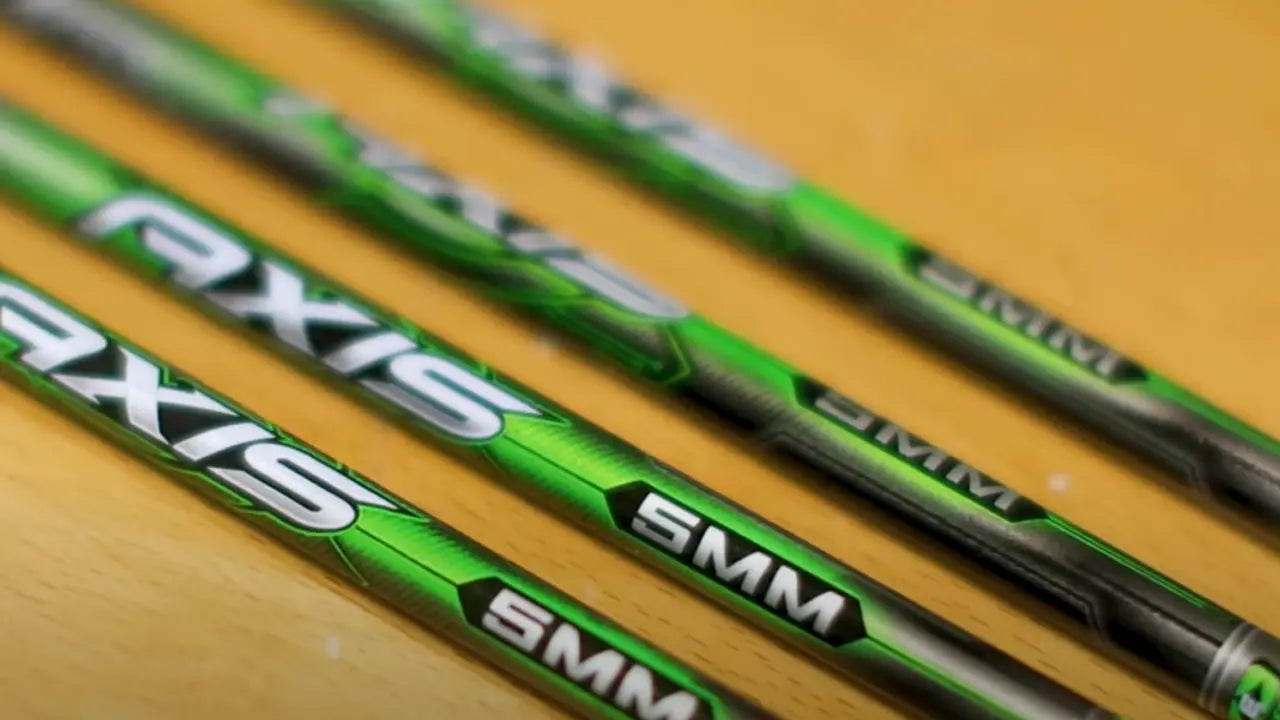

Easton Axis 5mm: The Proven Hunting Workhorse

The Axis 5mm is the shaft most people are talking about when they simply say, "Easton Axis."

It uses Easton's 5mm ACU-Carbon construction and is available in a broad range of spines, giving us plenty of room to build around different draw lengths, draw weights, arrow lengths, and front-end weight.

That broad spine range is one of the things I really like about this shaft. We can build Axis arrows for somebody with a short draw length and lower poundage, and we can also build them for somebody shooting a long draw, heavy poundage, and a lot of weight up front.

The Easton Axis 5mm Match Grade is the option I'd look at if you want the tighter straightness tolerance and the Match Grade component system.

If you don't need Match Grade, the standard Axis 5mm is still a very proven hunting shaft.

Why We Like the Axis 5mm for Hunting

• Proven durability
• Wide range of spine options
• Small-diameter 5mm shaft
• Simple HIT insert system
• Easy to add front weight
• Good option for medium- and heavier-weight hunting builds

Easton Axis 4mm: When You Want to Go Smaller

The Axis 4mm is a different animal.

This is where you move into a true micro-diameter shaft. If somebody is hunting out west, shooting a lot of distance, or they simply want to minimize how much shaft is exposed to crosswind, the 4mm starts to make a lot of sense.

The Axis 4mm Match Grade gives you that smaller shaft profile while still staying within the Axis family.

The trade-off is that the smaller you make the shaft, the more attention you've got to pay to the front component system.

That doesn't make the 4mm worse. It just means I don't want somebody choosing a 4mm because they heard "smaller is better" without looking at the complete build.

If you want a deeper explanation of where 4mm shafts make sense, check out our complete 4mm arrow guide and our 4mm vs 5mm vs 6.5mm comparison.

The HIT Insert System: One of the Biggest Reasons the Axis Works

One of the things that made the Axis 5mm different from a traditional carbon arrow was Easton's HIT — Hidden Insert Technology.

Instead of having a conventional insert sitting on the outside of the shaft, the HIT installs inside the arrow.

What I like about that system is that it keeps the broadhead or field point centered off the inside diameter of the shaft. It's simple, it's proven, and it gives us a lot of freedom when we're deciding how much weight we want up front.

There are also heavier HIT options available if we want to move more weight forward, and the Match Grade system gives us another option for reinforcing the front end of the shaft.

Standard vs Match Grade Axis: Do You Need .001 Straightness?

This is another place where I think people can overcomplicate things.

The standard Axis 5mm is built to a very good straightness tolerance, while the Match Grade version tightens that up even further.

Is the Match Grade shaft technically straighter? Absolutely.

Does that mean everybody needs to buy Match Grade arrows to kill a deer at 25 yards? No.

For a lot of bowhunters, the standard Axis is already more than capable of doing everything they need it to do. If you're shooting more distance, you're extremely particular about your builds, or you simply want the tighter manufacturing tolerance, that's where Match Grade makes more sense.

Straightness is important, but it is not the only thing determining whether your broadheads group. Correct spine, arrow flight, broadhead alignment, tune, and shooter consistency matter too.

Axis Spine and Arrow Weight: Don't Build Around One Number

The older version of this article talked about the Axis like it was basically a 450- to 600-grain arrow.

That's way too narrow.

Your finished weight depends on the spine you need, how long the shaft is, which insert system you're using, broadhead weight, vanes, nock, collars, and everything else you're putting on the arrow.

That's why I don't start by saying, "I want a 500-grain Axis."

I start with:

• Draw length
• Draw weight
• Arrow length
• Point and insert weight
• What the arrow is being used for

Then we choose the correct spine and see where the total build lands.

If you aren't sure how to determine the right spine, read our complete guide to choosing the right arrow for your bow.

How Durable Is the Easton Axis?

Durability is one of the biggest reasons the Axis 5mm has stayed relevant for so long.

But I don't like saying the Axis is durable simply because it's smaller diameter. That's too simplistic.

What matters is the actual shaft construction, wall thickness, spine, component system, and the abuse you're putting the arrow through.

From what we've seen in the shop and from shooting these arrows ourselves, the Axis 5mm is just a very robust hunting shaft.

It's one of the reasons I still recommend it when somebody values durability more than squeezing every last foot per second out of the bow.

Axis 5mm vs Easton 5.0: What's the Difference?

This is probably the question we get most often now when somebody is looking at an Easton 5mm arrow.

The simple answer is that the Axis 5mm is the heavier, more durability-focused option, while the Easton 5.0 gives you a lower-GPI platform that makes it easier to preserve speed and move more of your total weight budget to the front of the arrow.

I personally moved from the Axis 5mm to the Easton 5.0 for my hybrid hunting/TAC setup because I wanted more sight travel and a flatter trajectory at longer distances. My Axis setup worked extremely well — it was just heavier than what I wanted for that specific application.

That doesn't mean the 5.0 replaced the Axis. They solve different problems.

If you're trying to decide between the two, read our full Easton 5.0 vs Axis 5mm comparison.

Which Easton Axis Should You Choose?

Choose the Axis 5mm If...

You want a proven hunting arrow, durability is high on the priority list, and you like the simplicity and flexibility of the HIT insert system.

For whitetail, elk, and general bowhunting, this is still the Axis I think makes sense for the widest range of shooters.

Choose the Axis 4mm If...

You're shooting more distance, hunting in open country, dealing with wind, or you specifically want the smallest shaft profile in the Axis family.

Just make sure you're choosing the component system as carefully as you're choosing the shaft.

Choose Match Grade If...

You want the tighter straightness tolerance and you're willing to pay more for that tighter specification.

If you're hunting normal distances and the standard Axis is already doing everything you need, you don't have to convince yourself that Match Grade is mandatory.

Bottom Line

The Easton Axis is still one of the easiest hunting-arrow families for me to recommend because it's proven, versatile, and gives us enough options to build around a lot of different shooters.

For most hunters, the Axis 5mm is still the natural starting point. It's durable, the HIT system is simple, and there are enough spine and component options to build it a lot of different ways.

If long-range shooting and wind performance matter more, that's where the Axis 4mm deserves a closer look.

Either way, don't choose based only on diameter or straightness grade. Get the spine right first, decide what you want the arrow to do, and then build the components and finished weight around that.
