Xpedition NexLite 30 & NexLite 33 Bow Review: Ultra-Lightweight Performance with Press-Free Tuning

The all-new Xpedition NexLite series marks a major evolution for the brand, delivering an ultra-lightweight hunting bow platform packed with premium features—without the premium price tag often associated with high-end performance bows. In this in-depth Xpedition NexLite bow review, we break down the NexLite 30 and NexLite 33, covering specs, new technology, real-world shooting impressions, and which model best fits your hunting style.

Xpedition Archery has redesigned this lineup from the ground up, moving beyond the previous X-Lite series with a new riser, new cam system, upgraded strings, and one of the most user-friendly tuning systems currently available.

What’s New with the Xpedition NexLite Series?

The NexLite series isn’t a cosmetic refresh—it’s a full redesign. Xpedition focused on three core goals: weight reduction, shootability, and simplified tuning.

Key Upgrades Include:

• Brand-new ultra-light riser design
• NX8 cam system with modular efficiency
• Quarter-inch draw length adjustability
• ABB Platinum strings (2-year warranty)
• XLok press-free tuning system
• Cerakoted cams and hardware for durability

The result is a bow that feels modern, refined, and purpose-built for bowhunters who value performance and ease of ownership.

Xpedition NexLite 30 Specs & Performance

The NexLite 30 is the more compact and speed-focused option in the lineup, ideal for treestand hunters, ground blinds, and tight shooting environments.

NexLite 30 Specifications

• Axle-to-Axle: 30 inches
• IBO Speed: 336 FPS
• Brace Height: 6.375 inches
• Mass Weight: 3.6 lbs
• Draw Weight Options: 50–80 lbs
• Draw Length Range: 24–30 inches

On the Range – NexLite 30

At 70 pounds, 29 inches of draw length, and shooting a 412-grain arrow, the NexLite 30 averaged 301 FPS over a three-shot group. That’s impressive real-world speed for a bow this light.

The tradeoff? The draw cycle is noticeably stiffer on the back half compared to the 33-inch model. It’s not harsh, but you’ll feel some stacking—especially at higher draw weights. That said, the back wall is rock solid, post-shot vibration is minimal, and the bow holds exceptionally well on target.

Xpedition NexLite 33 Specs & Performance

The NexLite 33 leans into smoothness, stability, and forgiveness, making it a strong option for longer draws, higher poundage shooters, and those who prioritize comfort over raw speed.

NexLite 33 Specifications

• Axle-to-Axle: 33 inches
• IBO Speed: 330 FPS
• Brace Height: 6.375 inches
• Mass Weight: 3.75 lbs
• Draw Weight Options: 50–80 lbs
• Draw Length Range: 24.5–31 inches

On the Range – NexLite 33

Set at 70 pounds, 28.5 inches of draw length, and the same 412-grain arrow, the NexLite 33 averaged 281 FPS. While slower than the NexLite 30, the difference in shootability is immediate.

The draw cycle is exceptionally smooth with no dump, a forgiving valley, and a stable, locked-in feel at full draw. This bow tracks extremely well, resists hand torque, and feels incredibly controlled—qualities bowhunters will appreciate in real hunting situations.

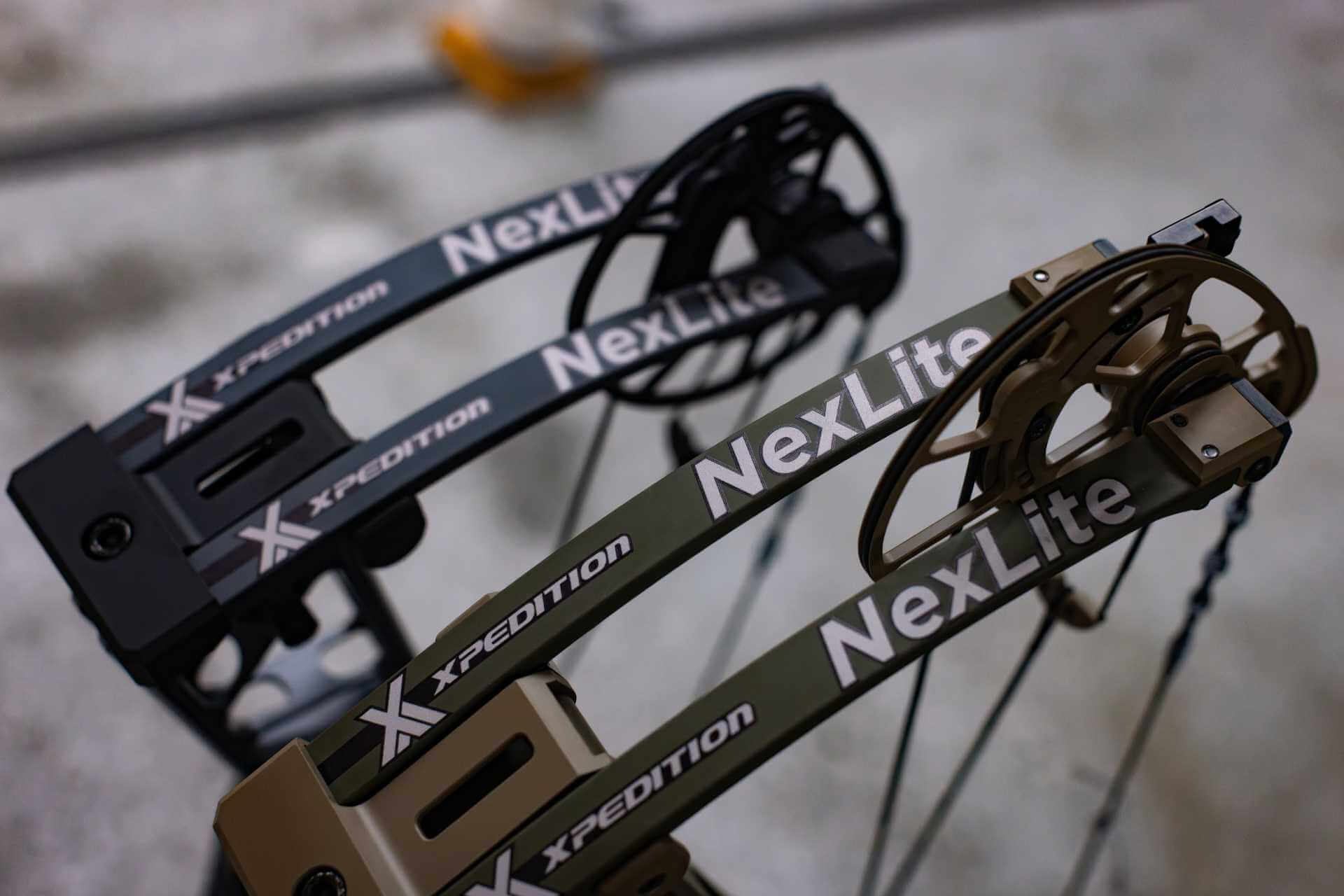

NX8 Cam System: Smooth, Efficient, and Adjustable

The new NX8 cam system is a standout feature of the NexLite series. Both top and bottom cams are identical and sero-coated for durability and corrosion resistance.

Key cam highlights include:

• Modular draw length adjustments
• Quarter-inch draw length increments
• Three performance-based mods to maximize efficiency
• Adjustable let-off from approximately 75% to 85%

This design allows shooters to fine-tune the bow precisely to their setup without sacrificing performance at different draw lengths.

XLok Tuning System: No Press Required

One of the biggest innovations in this Xpedition NexLite bow review is the XLok tuning system. This press-free shim system allows macro tuning adjustments without needing a bow press—an enormous benefit for DIY bowhunters.

How It Works:

• Loosen axle screws (one full turn per side)
• Slightly separate the limbs by hand
• Swap polymer shims (1/3 or 2/2 configuration)
• Tighten everything back down and shoot

It’s fast, intuitive, and perfect for making cam lean corrections at home or in camp.

Grip, Feel, and Stability

Both NexLite bows feature a very thin, minimalist grip. While it may feel different at first, the design minimizes hand torque and promotes consistent hand placement. Over time, the grip proves to be extremely effective, especially when shooting under pressure.

In terms of stability:

• NexLite 33 feels more stable and forgiving
• NexLite 30 feels quicker and more reactive

Neither bow shows noticeable post-shot vibration, even when shot bare.

Accessories & Build Quality

Xpedition has also expanded its accessory ecosystem, including:

• Bow-mounted folding bow stand
• Matching stabilizers and quivers
• Integrated mounting options for sights and rests

The bow stand, in particular, is a smart addition—it stays attached, folds out of the way, and is always ready when you need it.

NexLite 30 vs NexLite 33: Which Should You Choose?

Choose the NexLite 30 if:

• You prioritize speed and compactness
• You hunt from treestands or blinds
• You want a lighter, quicker bow

Choose the NexLite 33 if:

• You value smoothness and stability
• You shoot higher draw weights
• You want a forgiving, comfortable draw cycle

Both bows are exceptionally light, well-built, and competitively priced—making the NexLite series one of the most compelling releases of the year.

Final Thoughts on the Xpedition NexLite Series

Xpedition has taken a significant step forward with the NexLite lineup. From press-free tuning and premium strings to real-world shootability, these bows deliver modern performance without unnecessary complexity.

If you’re shopping for a lightweight hunting bow that’s easy to tune, comfortable to shoot, and loaded with thoughtful features, the Xpedition NexLite 30 and NexLite 33 deserve a serious look.
