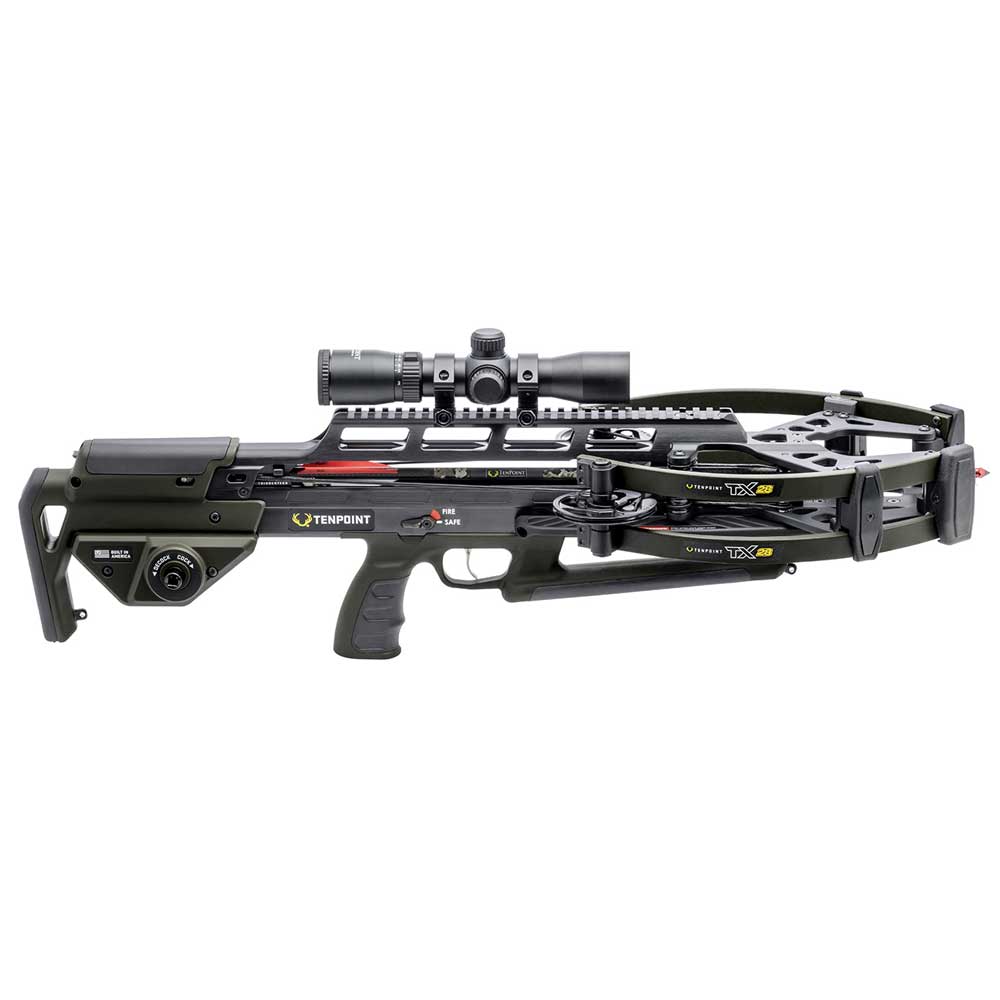

Tenpoint TX28 Rangemaster

TX28 Rangemaster Tech

Meet the TenPoint TX28 Rangemaster — compact cutting-edge technology packaged into the shortest, narrowest rail-less crossbow in the TenPoint lineup. At just 28" overall length and a cocked width of 6.5", the TX 28 is built for hunters who demand maximum maneuverability without sacrificing speed or accuracy.

This rail-less design churns out 410 FPS while staying incredibly smooth and quiet thanks to Twin-Riser Technology, TriggerTech’s precision trigger, and the ZERO-Trac Barrel with GUIDE-Lock rest system. The TX 28 pairs TenPoint’s ACUslide MAXX™ safe de-cocking with the ACU-Lock™ Scope Bridge for rock-steady optics and repeatable long-range performance — a compact crossbow engineered for absolute precision.

FEATURES

RangeMaster 100 Scope (100-yard): Variable-speed scope tuned for accuracy out to 100 yards and rated for speeds up to 505 FPS.

Twin-Riser Technology (TRT): 18% lighter and twice as stiff as traditional risers. Symmetrical top/bottom plates reduce flex, noise, and vibration for unmatched down-range consistency.

TriggerTech Precision Trigger: Frictionless Release Technology (FRT) provides a true zero-creep “breaks like glass” feel for improved shot control.

CenterPunch HPX Carbon Arrow with Snap-In Nock: Alpha-Nock HPX snaps into the TriggerTech box so you can hear and feel your arrow locked and ready.

AR-Style Ambidextrous Thumb Safety: Conveniently placed so both hands stay in position and eyes stay on target.

ZERO-Trac Barrel & GUIDE-Lock Arrow Rest System: Rail-less barrel reduces weight and friction; GUIDE-Lock fully captures the arrow with three points of contact (two ball bearings + retention brush) for rock-steady nock travel and superior down-range accuracy.

ACUslide MAXX Cocking & Safe De-Cocking (patented): Stronger, smoother, and safer — handle stops if you remove your hand, providing silent cocking and safe de-cocking.

ACU-Lock Scope Bridge: Up to 25× stronger than traditional rails to give your scope the most stable mounting platform possible.

SPECIFICATIONS

• Speed: 410 FPS (Pro Elite 400 Carbon, 410 gr)
• Kinetic Energy: 153 ft-lbs (Pro Elite 400 Carbon)
• Length (w/o foot stirrup): 28"
• Width Axle-to-Axle (uncocked/cocked): 11" / 6.5"
• Power Stroke: 12"
• Draw Weight: 250 lb
• Weight (w/out accessories): 7.2 lbs
• Draw Style: Forward Draw (ACUslide MAXX)
• Cocking Device: ACUslide MAXX (integrated)
• Scope: RangeMaster 100
• Safe De-Cocking: ACUslide MAXX
• Speed / Kinetic Energy (TenPoint test arrows)
• Pro Elite 400 Carbon Arrow (410 gr): 410 fps / 153 ft-lbs
• CenterPunch HPX Carbon Arrow (445 gr): 390 fps / 150 ft-lbs

Package Includes:

• RangeMaster 100 Scope
• ACUslide MAXX Cocking & Safe De-Cocking System (patented)
• 3 × CenterPunch HPX Carbon Arrows (with Alpha-Nock HPX)
• Integrated String Stop
• Bow Hook
• Quiver

Why Extreme Outfitters Recommends the TenPoint TX28 Rangemaster

The TX28 is one of the most compact, accurate, and feature-rich crossbows available — perfect for hunters who need maneuverability in tight setups without sacrificing speed or precision.
